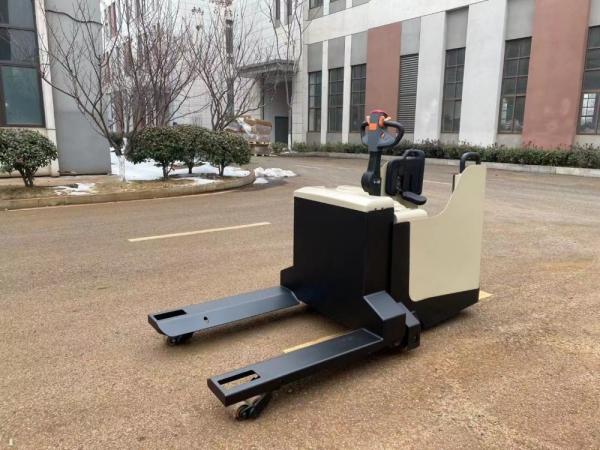

Seat Semi-enclosed Transport Vehicle Load Capacity Electric Pallet Jack Warehouse Tray Transport Vehicle

  • 1
  • 2

Brand Name : YONGJIELI

Model Number : CBD25

Certification : CE

Place of Origin : ANHUI, CHINA

MOQ : 1 PC

Price : $1900.00-$3900.00

Payment Terms : L/C, T/T, D/A, D/P, Western Union

Supply Ability : 50 SETS PER MONTH

Delivery Time : 10 WORK DAYS

Packaging Details : EXPORT PACKING

Cylinder : Double oil

Battery : Lithium Battery

Braking Form : Electromagnetic braking

Power : AC

Steering Form : Electronic steering

Battery Voltage : 48 - 80 V

Charging Time : 4 - 6 hours

Model : Electric Pallet Forklift

Contact Now

Tray transport vehicle: suitable for long and short distance transportation, with a rated load capacity of 2000-25000kg, a standard fork length of 1150mm for 2000-4000kg, an outer width of 685/560mm for forks, and a lifting stroke of 120mm for forks. 5000-6000kg fork length 1200mm, fork outer width 715mm, minimum ground clearance 95mm.8000-1200kg, fork length 1200mm, fork outer width 900mm, minimum ground clearance 125-160mm; Transport trucks with a capacity of over 6 tons are suitable for industries such as molds, steel coils, and cables



Safety:

  • Drive stepless speed regulation
  • Controller multiple automatic protection system
  • Emergency reverse anti-collision/ emergency braking device

Design and manufacturer of intelligent storage equipment

Customized supplier of non-standard storage equipment



Advantage:

  • Separately excited drive battery, strong climbing force
  • High strength fork legs and forks
  • Special mast channel steel for high-strength forklift truck
  • High capacity lithium battery
  • Special charger for built-in lithium battery
  • Multifunctional integrated handle
  • Special operating handle for narrow channel
  • High power lifting hydraulic pump station

Seat Semi-enclosed Transport Vehicle Load Capacity Electric Pallet Jack Warehouse Tray Transport Vehicle

Product parameters:

Name   Electric pallet truck
Model   CBD20
Load kg 2000
Load center mm 600
Minimum ground clearance mm 90
Maximum ground clearance mm 200
Driving mode   Walking type
Overall width mm 780
Overall length mm 1790
Fork outer width mm 685/560
Maximum height of handle from the ground mm 1275
Turning Radius mm 1645
Fork size mm 1150*175*70
Right angle stacking channel (1200 x1000mm) mm 2425
Traveling speed (loaded/ unloaded) mm/s 3.5/4
Lifting motor (S3-15%) kw 0.8
Travel motor (S2-60min) kw 1.5
Braking form   Electromagnetic braking
Steering form   Mechanical steering
Body weight kg 600
Battery weight kg 200
Climbing gradient (full load/ no load) % 5/8
Battery capacity v/ah 210
Charger v/a 30
Number of tires (front/ rear) (X= drive wheel)   4/1X+2
Drive wheel mm Φ230*75
Bearing wheel mm Φ85*70
Auxiliary wheel mm Φ100 *50
Lifting speed (full load/ no load) mm/s 27/35
Falling speed (full load/ no load) mm/s 35/35
Tire type   Polyurethane
Battery replacement method   Lifting type



The company reserves the right to change the product design and planning, and the parameters are subject to change without notice
