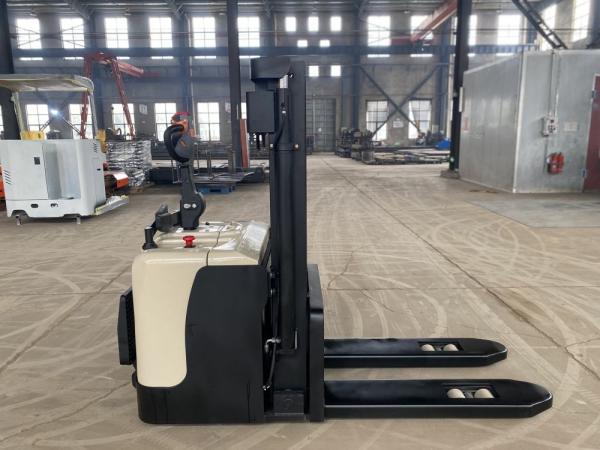

1.5 Ton Electric Pallet Stacker 7500mm Standard Lifting Height

Product Categories

Anhui Yongjieli Intelligent Equipment Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 15 Ton Electric Pallet Stacker 7500mm Standard Lifting Height
Brand: YONGJIELI
Price: 2470.00 USD

Brand Name : YONGJIELI

Model Number : CDD

Certification : CE

Place of Origin : ANHUI, CHINA

MOQ : 1 SETS

Price : USD2470.00 - USD4700.00

Payment Terms : L/C, T/T, D/A, D/P, , MoneyGram

Supply Ability : 50 SETS PER MONTH

Delivery Time : 10 WORK DAYS

Packaging Details : EXPORT PACKING

Power type : Battery

Tire type : Polyurethane

Mast type : Duplex mast

Steering type : Electronic steering

Parking brake type : Electromagnetic braking

Name : Electric Pallet Stacker

Contact Now

1.5 Ton CQD15 Standard Drive Endless Speed Regulation Electric Seat Sytle Pallet Stacker

Model		CQD15
Power type		Electric
Operation mode		Seated type
Rated load	kg	1500
Load center distance	mm	600
Tire type	mm	Solid PU
Front wheel specification	mm	267*114
Specification of driving wheel	mm	343*135
Number of tires		2/1X
Fork inclination (forward / backward)		3/5
Standard lifting height	mm	7500
Free lifting height	mm	2585
Height of mast closed	mm	3150
Maximum height during lifting	mm	8485
Height of roof protection frame	mm	2190
Fork leg height	mm	310
First pedal height	mm	320
Second pedal height	mm	530
Seat height	mm	975
Distance between the second pedal and the roof protection frame	mm	1615
Ground clearance of fork leg	mm	110
Floor clearance of underbody	mm	80
Overall length	mm	2440
Reach distance	mm	550
Front overhang distance	mm	160
Wheelbase	mm	1495
Overall width	mm	1270
Track width (front / rear)	mm	1158/0
Outside width of fork	mm	210-800
Fork specifications	mm	107010035
Channel width (1000*1000mm tray)	mm	2745
Turning radius	mm	1775
Walking speed	km/h	7.5/8
Lifting speed	mm/s	150/260
Descent speed	mm/s	300/160
Gradient	%	8/10
Drive motor power	kw	4.5
Lifting motor power	kw	6.3
Battery voltage/ capacity	v/ah	48/400
Battery weight	kg	650
Vehicle weight	kg	3500
Steering type		Electronic transformation
Parking brake type		Electromagnetic braking
