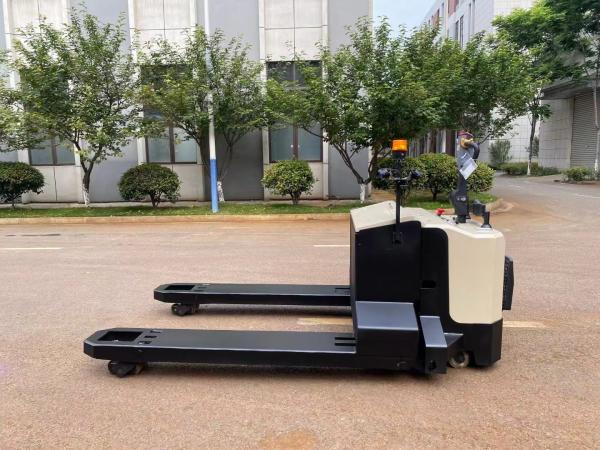

10000 kg Maximum Load Capacity Electric Pallet Truck with 48V 300AH Battery Capacity

  • 1
  • 2
  • 3

Brand Name : YONGJIELI

Model Number : CBD100

Certification : CE

Place of Origin : ANHUI, CHINA

MOQ : 1 SETS

Price : USD4700.00

Payment Terms : L/C, T/T, D/A, D/P, Western Union

Supply Ability : 50 SETS PER MONTH

Delivery Time : 10 WORK DAYS

Packaging Details : EXPORT PACKING

Drive Motor : AC

Steering Type : Electronic Steering

Brake System : Electromagnetic

Brake Mode : Lever Operation

Maximum Load Capacity : 10000 kg

String Lenght : 1800 mm

Battery Capacity : 48V300AH

Contact Now

 Specification :
Uniform load capacity: 10 tons
Fork length: 1800mm
Fork outer width: 1500mm
Lifting stroke: 120mm
Battery capacity: 48V300AH
Electronic steering pedal protection arm
Password lock+magnetic card key
Travel alarm light and reverse buzzer
Front and rear blue light turning speed limit







Name   Electric pallet truck
Model   CBD100
Load kg 10000
Load center mm 600
Min. ground clearance mm 145
Max. ground clearance mm 265
Control form   Side standing
Vehicle width mm 1250
Total length of vehicle body mm 2220
Fork outer width mm 800
Maximum ground clearance of steering wheel mm 1275
Turning radius mm 2015
Fork size mm 1200x340
Right angle stacking channel mm 2720 (pallet size 1000*1000)
Traveling speed (loaded/ unloaded) km/h 5/ 6
Lifting motor (S3-15%) kw 4.5
Travel motor (S2-60min) kw 4.0
Steering motor kw 0.5
Braking form   Electromagnetic braking
Steering form   Electronic steering
Controller   CURTIS
Body weight kg 1700
Battery weight kg 500
Climbing gradient (full load/ no load) % 3/8
Battery capacity v/ah 48/300
Charger v/ah 48/50
Number of tires, front/ rear (X= drive wheel)   4/1X+8
Drive wheel mm Φ343 *135
Bearing wheel mm Φ125*100
Auxiliary wheel mm Φ150*50
Lifting speed (full load/ no load) mm/s 40/54
Falling speed (full load/ no load) mm/s 55/45
Tire type   Polyurethane
Battery replacement method   Side pull type



FAQ:

Q1: Are you electric forklift factory?

A1: Yes, we are the professional manufacturer of electric forklift with rich experience for more than 5 years.



Q2: How about the delivery time?

A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.



Q3: Is customized solution available?

A3: Yes, we can provide different customized solution.



Q4: Can you provide OEM or ODM service?

A4: Yes.
